Real-time Updates

Enhance your Cardano escrow application with real-time transaction updates using Blockfrost webhooks and ngrok for local development.

Introduction

In this section, we'll enhance our transaction list by implementing real-time updates using Blockfrost webhooks. This will provide a much better user experience by showing immediate updates when transactions are confirmed on the blockchain. However note that in order to implement this in a production application, you will need to implement proper rollback protection and handle lost transactions.

Webhook Overview

Webhooks provide a mechanism for receiving real-time notifications about blockchain events. Instead of constantly polling for transaction confirmation updates, our application will receive instant notifications when transactions are confirmed (Based on the confirmation threshold set in the webhook configuration) on the Cardano blockchain.

Our hybrid approach uses:

  1. Initial polling: For pending transactions when they're first created

  2. Webhooks: For confirmation notifications when the blockchain confirms transactions

Key advantages of this hybrid approach:

  • Real-time Updates: Instant notifications when transactions are confirmed, without waiting for the next poll cycle

  • Reduced API Usage: Significantly fewer polling requests compared to a pure polling solution

  • Better User Experience: More immediate UI updates for confirmed transactions

  • Server Resource Efficiency: Lower overall load on both client and server

Implementation Steps

  1. Install ngrok (a tunneling service) and start your development server at http://localhost:3000

  2. Set up Blockfrost webhook and have them send notifications to your ngrok URL with the endpoint /api/webhooks/blockfrost

  3. Implement Next.js route handler for webhook endpoint src/app/api/webhooks/blockfrost/route.ts

  4. Handle webhook events in the endpoint

1. Install and Configure ngrok

Since Blockfrost webhooks require a public URL to send notifications to, first we'll use ngrok to expose your local development server.

Installing ngrok

  1. Sign up for a free ngrok account at dashboard.ngrok.com

  2. Install ngrok using npm:

npm install -g ngrok

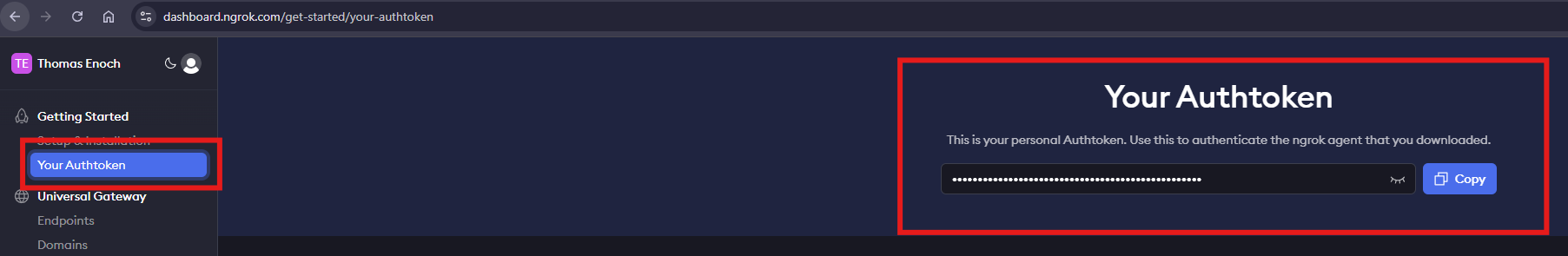

  1. Configure ngrok with your auth token (found in your ngrok dashboard):

Ngrok Auth Token
Ngrok Auth Token
ngrok config add-authtoken YOUR_AUTH_TOKEN

  1. Start your Next.js development server if it's not already running:

npm run dev

  1. In a separate terminal, start ngrok to expose your local server:

ngrok http 3000

After Starting ngrok

  1. Once ngrok is running, you'll see a terminal display with connection information

  2. Look for the 'Forwarding' URL that looks like https://xxxx-xxx-xxx-xxx-xxx.ngrok-free.app

  3. Copy this URL - you'll need it for configuring your Blockfrost webhook

  4. Keep this terminal window open as long as you need the tunnel active

2. Set Up Blockfrost Webhook

  1. Create a Blockfrost account at blockfrost.io

  2. Navigate to the Webhooks section in your Blockfrost dashboard

  3. Click the 'Create webhook' button to create a new webhook

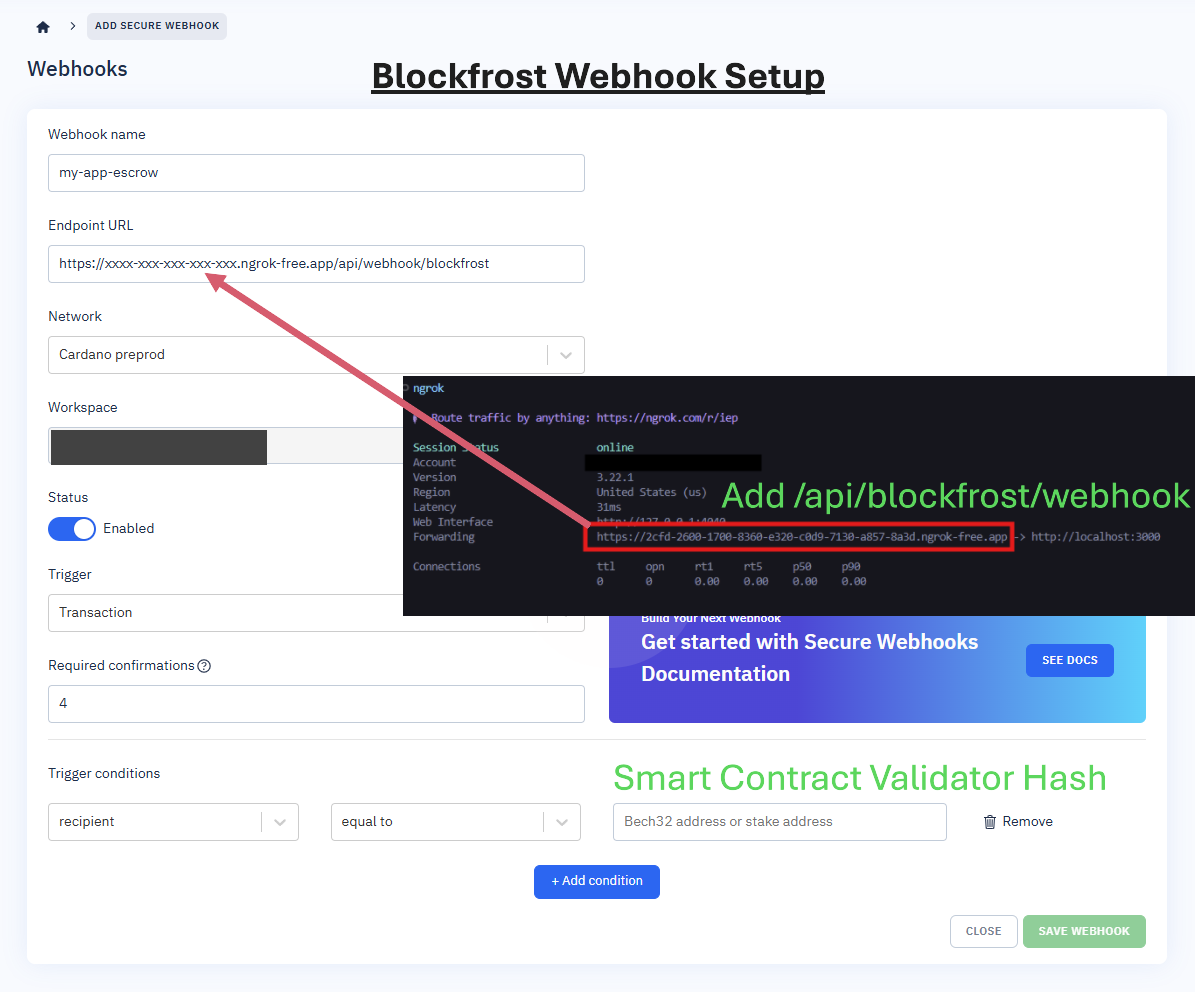

  4. Configure your webhook with these settings:

Blockfrost Webhook Configuration Interface
Blockfrost Webhook Configuration Interface

  1. Webhook name: Give it a descriptive name (e.g., 'my-app-escrow-lock-trigger-ngrok')

  2. Endpoint URL: Enter your ngrok URL followed by your webhook endpoint path (e.g., 'https://xxxx-xxx-xxx-xxx-xxx.ngrok-free.app/api/webhook/blockfrost')

  3. Network: Select 'Cardano preprod' for testnet development

  4. Status: Ensure it's enabled

  5. Trigger: Select 'Transaction'

  6. Required confirmations: Set to your desired confirmation threshold (typically 1-3 for testing)

  7. Trigger conditions:

    • Set condition type to 'recipient'

    • Set operator to 'equal to'

    • Enter your escrow script address (this can be found in the script deployment data or derived from the validator hash using the Anvil API)

  8. Click 'Save webhook' to finalize the configuration

Important: Save the 'Auth token' provided by Blockfrost, and update your local .env.local file with your BLOCKFROST_WEBHOOK_SECRET.

3. Create the Webhook Endpoint

Let's create the webhook endpoint src/app/api/webhooks/blockfrost/route.ts that will receive notifications from Blockfrost:

// src/app/api/webhooks/blockfrost/route.ts
import { NextResponse } from "next/server";
import { upsertWallet, upsertTx } from "@/lib/db";
import { TX_STATUS } from "@/lib/types";

export async function POST(request: Request) {
  try {
    const body = await request.json();
    for (const event of body.payload) {
      const wallet = event.inputs?.[0]?.address;
      const txHash = event.tx.hash;
      const amount = event.outputs?.[0]?.amount.find(
        (a: { unit: string; quantity: string }) => a.unit === "lovelace"
      )?.quantity;
      if (wallet && amount) {
        upsertWallet(wallet);
        upsertTx(txHash, wallet, Number(amount), TX_STATUS.CONFIRMED);
      }
    }
  } catch (err) {
    console.error("Failed to handle webhook:", err);
  }
  return NextResponse.json({ ok: true });
}

5. Update Your BlockfrostWebhook URL

Now that your webhook endpoint is set up and ngrok is running:

  1. Return to the Blockfrost dashboard

  2. Update your webhook with the new ngrok URL: https://[your-ngrok-url]/api/webhooks/blockfrost

  3. Make sure you press 'Save Webhook' to save the changes

6. Webhook Payload Structure

Blockfrost will send notifications with a payload structure like this:

{
  "id": "webhook-id",
  "webhook_id": "your-webhook-id",
  "created": 1625558414,
  "api_version": 0,
  "type": "transaction",
  "payload": [
    {
      "tx": {
        "hash": "transaction_hash_here"
      },
      "inputs": [
        {
          "address": "wallet_address_here"
        }
      ],
      "outputs": [
        {
          "amount": [
            {
              "unit": "lovelace",
              "quantity": "amount_in_lovelace"
            }
          ]
        }
      ]
    }
  ]
}

7. Smart Polling Implementation

Let's implement a smart polling mechanism in src/hooks/useTransactions.ts that only activates when there are pending transactions. This approach conserves resources while still providing timely updates:

Add the React useEffect hook and the usePollingTransactions hook to the useTransactions hook:

// src/hooks/useTransactions.ts

// Import React useEffect hook
import { useEffect, useState } from "react";

/**
 * Hook to manage transaction data with polling that automatically
 * activates only when pending transactions are detected
 * @param wallet - Wallet address to fetch transactions for
 * @returns Transaction data with loading and error states
 */
export function usePollingTransactions(wallet?: string) {
  // Track if we have any pending transactions that need polling
  const [hasPendingTx, setHasPendingTx] = useState(false);

  const query = useQuery<Transaction[], Error>({
    queryKey: ['transactions', wallet],
    queryFn: async () => {
      if (!wallet) throw new Error("Wallet is required");
      const response = await fetch(`/api/escrow/transactions?wallet=${wallet}`);
      return response.json();
    },
    enabled: !!wallet,
    // Only activate polling when wallet is connected AND we have pending transactions
    refetchInterval: wallet && hasPendingTx ? 5000 : false,
  });

  // Monitor transaction data for pending status changes
  useEffect(() => {
    if (query.data) {
      // Check if any transactions have PENDING status
      const isPending = query.data.some(tx => tx.status === TX_STATUS.PENDING);

      // Only update state if the pending status changed
      // This prevents unnecessary re-renders
      if (isPending !== hasPendingTx) {
        setHasPendingTx(isPending);
      }
    }
  }, [query.data, hasPendingTx]);

  return query;
}

7. Update MyTransactions Component

Finally, we need to update our MyTransactions component src/components/MyTransactions.tsx to use the new polling hook instead of the regular transactions hook:

// src/components/MyTransactions.tsx
"use client";

// Update this import to use the new polling hook instead
import { usePollingTransactions } from '@/hooks/useTransactions';
import { useWallet } from '@ada-anvil/weld/react';
import { Transaction, TransactionStatus, TX_STATUS } from '@/lib/types';

// Rest of component code remains the same...

export default function MyTransactions() {
  const wallet = useWallet();
  const address = wallet.changeAddressBech32;

  // Replace useTransactionsByWallet with usePollingTransactions
  const { data: transactions = [], error, isLoading } = usePollingTransactions(address);

  // Rest of component remains the same...
}

This change enables smart polling that automatically activates when there are pending transactions, and disables when all transactions are confirmed, providing real-time updates while conserving resources.

8. Test the Webhook Integration

Let's test the complete flow with webhooks:

  1. Ensure your Next.js server is running

  2. Verify ngrok is properly exposing your local server

  3. Check that the Blockfrost webhook is configured and enabled

  4. Connect your wallet in the application

  5. Lock some funds using the Lock Funds form

  6. Observe how the transaction initially shows as "Pending"

  7. Wait for Blockfrost to detect the transaction confirmation and send a webhook

  8. Verify that the transaction status updates to "Confirmed" immediately after the webhook is received

Understanding the Webhook Flow

The complete flow with webhooks works as follows:

  1. Transaction Creation: User locks funds, creating a transaction

  2. Initial Status: Transaction is stored with "PENDING" status

  3. Initial Polling: UI polls frequently at first to provide responsive feedback

  4. Blockchain Confirmation: Transaction is confirmed on the Cardano blockchain

  5. Webhook Notification: Blockfrost detects the confirmation and sends a webhook

  6. Status Update: Our webhook handler updates the transaction status to "CONFIRMED"

  7. UI Update: The next poll or React Query invalidation refreshes the UI

This hybrid approach combines the best of both worlds:

  • Immediate feedback through initial polling

  • Reliable long-term updates through webhooks

  • Fallback to extended polling for resilience

Monitoring Webhook Activity

To help troubleshoot and verify webhook activity, let's add some simple logging:

// src/app/api/webhooks/blockfrost/route.ts
// Add this to the existing file

// Add at the top of the POST function
console.log(`Received webhook at ${new Date().toISOString()}`);

// Add inside the try block after processing
console.log(`Processed ${body.payload.length} webhook events`);

// Add inside the catch block
console.error("Webhook error details:", JSON.stringify(err));

Webhook Security Considerations

In a production environment, you would want to add security to your webhook endpoint:

  1. Webhook Secrets: Use a shared secret with Blockfrost to verify webhook authenticity

  2. IP Filtering: Restrict access to known Blockfrost IP addresses

  3. Rate Limiting: Protect against DoS attacks by implementing rate limiting

  4. Request Validation: Validate the webhook payload structure before processing

For our tutorial, we've kept it simple, but consider these enhancements for production use.

Benefits of Real-time Updates

With the webhook implementation, users will experience:

  1. Immediate Feedback: Transaction status changes are reflected immediately

  2. Reduced Network Traffic: No need for constant polling requests

  3. Better Battery Life: Mobile devices benefit from fewer background requests

  4. More Responsive UI: Status changes happen in near real-time

Troubleshooting

Webhook Not Receiving Events

If your webhook isn't receiving events:

  1. Check ngrok status - ensure the tunnel is active

  2. Verify your webhook URL in the Blockfrost dashboard

  3. Check Blockfrost webhook logs for delivery attempts

  4. Ensure your application is properly handling POST requests

Inconsistent Status Updates

If transaction statuses are not updating correctly:

  1. Enable detailed logging in your webhook handler

  2. Verify the transaction hash matching in your database operations

  3. Check that the database is successfully updated when webhooks are received

During development, Blockfrost may take a few minutes to start sending webhooks for newly configured endpoints. Be patient during initial testing.

Best Practices for Webhook Implementation

  1. Idempotency: Ensure your webhook handler can safely process the same event multiple times

  2. Async Processing: For high-volume applications, consider processing webhooks asynchronously

  3. Monitoring: Implement logging and monitoring to track webhook health

  4. Fallback Strategy: Always maintain a fallback mechanism (like polling) for resilience

Congratulations! You've completed Part 5 of the guide. Your application now receives real-time updates when transactions are confirmed on the blockchain, providing a much better user experience.
